Refcomp SRC-S(W)-603 SRC-S-603-L4 Mid-Temperature Refrigeration Screw Compressor

Payment Terms : T/T,Western Union

Horse Power : 220HP/164KW

Model Number : SRC-S(W)-603,SRC-S-603-L4

Application : HVAC,Cold Room,Condensing Unit,Air Conditioning

MOQ : 1

Delivery Time : 1 Month

Packaging Details : Wooden Case

Displacement 50/60Hz : 700/840 m³/hr

Price : Discussed

Supply Ability : 100000Pcs/Year

Voltage : 400V/3/50Hz-460V/3/60Hz

Certification : CE

Refrigerant : R22, R407C, R404A,R507

Brand Name : Refcomp

Energy regulation : 100%,75%,50%,25%(stepless 100%-25%)

Place of Origin : China

Contact Now

Refcomp SRC-S(W)-603 SRC-S-603-L4 Mid-Temperature Refrigeration Screw Compressor
Product Description
  • Precision Rotor Profile: Advanced asymmetrical rotor geometry delivers smooth gas compression and high volumetric efficiency for demanding refrigeration screw compressor applications.
  • Built-In Oil Separator: Multi-stage centrifugal separation system achieves up to 99.85% oil separation efficiency, reducing oil circulation and preserving heat exchanger performance.
  • Heavy-Duty Bearing Assembly: High-precision angular contact and thrust bearings withstand heavy mechanical loads to support extended operational longevity.
  • Comprehensive Motor Protection: Special motor windings pair with an INT69 SNY protection module featuring 6 PTC thermistors to prevent thermal overload and phase faults.

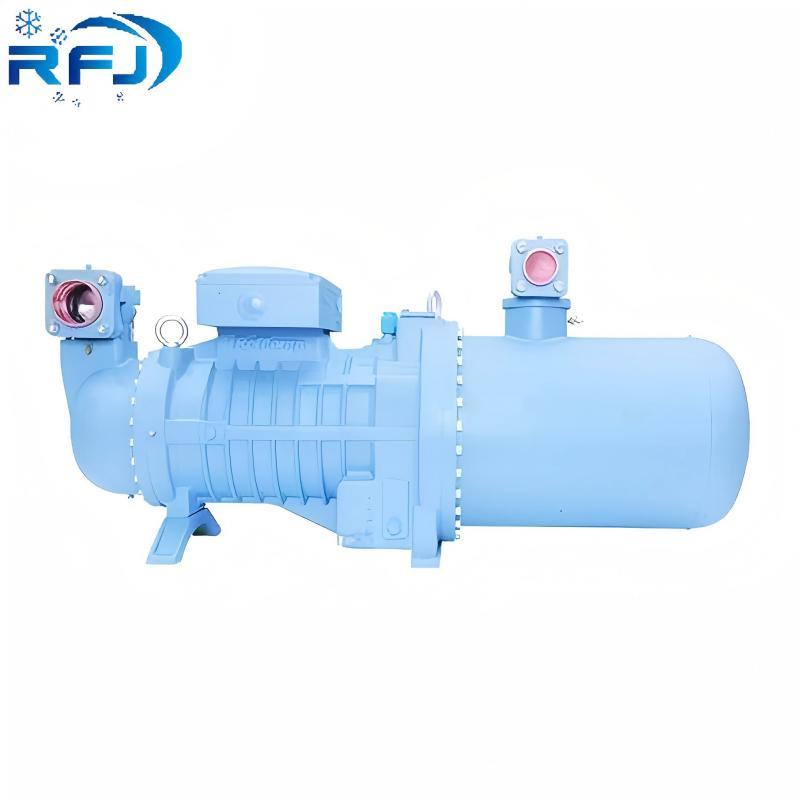

Product Image
Refcomp SRC-S(W)-603 SRC-S-603-L4 Mid-Temperature Refrigeration Screw Compressor
Technical Parameters
Model SRC-S(W)-603 SRC-S-603-L4
Standard Motor Power 220HP/164KW
Displacement (50/60Hz) 700/840 m³/h
Weight 1020KG
Oil Charge 20L
Cooling Capacity Regulation 100%,75%,50%,25% (stepless 100%-25%)
Electrical Heater 275W-230V-50/60Hz
Standard Motor 400/3/50Hz-460/3/60Hz
LRA Y/Δ 543/1645A 595/1802A
Refcomp SRC-S(W)-603 SRC-S-603-L4 Mid-Temperature Refrigeration Screw Compressor
Frequently Asked Questions
What details should be provided when selecting this refrigeration screw compressor for a system build?
Please specify your target cooling capacity, operating evaporating and condensing temperatures, refrigerant selection, and project site electrical specifications.
What piping precautions should be observed when connecting this compressor to the refrigeration circuit?
Match connections to the 80.0 mm discharge and 105.5 mm suction lines, install rigid supports to prevent line vibration, and verify check valve alignment to avoid reverse rotation on shutdown.
What pre-start checks are essential before initial system commissioning?
Confirm that the 20 dm³ oil charge is visible at the proper level in the sight glass, verify control loop wiring for the INT69 SNY protection module, and ensure the 275W crankcase heater has energized for adequate time.
What routine maintenance steps help ensure long-term operational stability?
Inspect the 100 µm suction filter element for pressure drop, check oil cleanliness and differential pressure, and verify motor overload safety circuits during scheduled maintenance cycles.
